A Definitive Overview of a Synthesizer Classic
Introduction

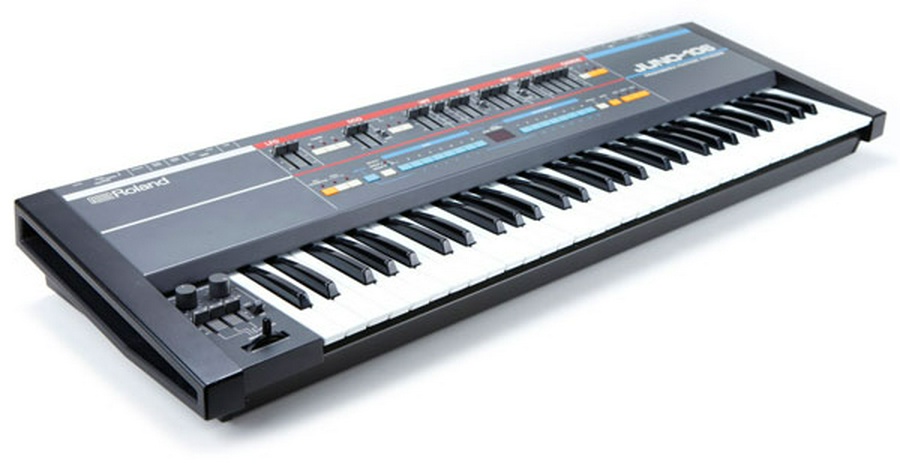

The Roland Juno-106 occupies a unique position in the history of electronic instruments. Released in 1984, it represents the moment when analog synthesis became both accessible and standardized, without sacrificing musical character. Known for its clarity, reliability, and immediacy, the Juno-106 remains one of the most widely used and recognizable polyphonic analog synthesizers ever produced.
Historical Context
By the early 1980s, synthesizers were transitioning from complex, modular-inspired designs to more user-friendly instruments aimed at working musicians. Roland’s earlier Juno models—the Juno-6 and Juno-60—had already established a reputation for simplicity and sound quality. The Juno-106 built on this foundation while introducing full MIDI implementation, making it especially attractive as studios began integrating sequencers, drum machines, and computer-based workflows.
At the time of its release, the Juno-106 offered a compelling alternative to more complex and expensive polyphonic synthesizers. Its streamlined architecture reduced cost and maintenance while preserving a distinctly analog sound.
Architecture and Signal Path
The Juno-106 is a six-voice polyphonic, subtractive analog synthesizer. Each voice consists of a digitally controlled oscillator (DCO), an analog voltage-controlled filter (VCF), and a voltage-controlled amplifier (VCA). While the oscillator tuning is digitally stabilized, the audio path itself remains fully analog, contributing to the instrument’s characteristic warmth and consistency.
The oscillator section includes a sawtooth and pulse wave, with adjustable pulse width and pulse-width modulation via LFO or envelope. A dedicated sub-oscillator adds low-frequency weight, making the Juno-106 particularly effective for bass sounds.
The filter is a 24 dB/octave low-pass design with resonance capable of self-oscillation. Paired with a non-resonant high-pass filter, it allows for precise tonal shaping without excessive complexity.
Envelopes, LFO, and Modulation
The Juno-106 features a single ADSR envelope generator shared between the filter and amplifier. While this may seem limiting on paper, the design encourages efficient sound creation and contributes to the instrument’s fast workflow.
A single low-frequency oscillator provides modulation for pitch, filter cutoff, and pulse width. Though modest compared to modern modulation systems, the LFO is well-tuned for musical results, particularly for vibrato, slow filter sweeps, and animated pads.
Chorus: A Defining Feature
One of the most celebrated elements of the Juno-106 is its built-in stereo chorus. Utilizing analog bucket-brigade delay circuits, the chorus adds depth, movement, and width to otherwise simple waveforms. The two selectable modes, along with a combined setting, are responsible for many of the lush pad sounds that define the instrument’s legacy.
While the chorus introduces audible noise, this imperfection has become part of the Juno-106’s sonic identity and is often considered essential to its sound.
Interface and Usability
The Juno-106 is widely praised for its one-slider-per-function layout. Parameters are clearly labeled and immediately accessible, eliminating the need for menu diving or complex modulation routing. This design makes the instrument particularly suitable for live performance and rapid sound design.
Patch memory allows users to store and recall sounds instantly, a significant advantage at the time of release. Combined with MIDI control, this made the Juno-106 an early example of a synthesizer that bridged analog sound with modern production requirements.
MIDI and Connectivity
Full MIDI implementation was a defining advancement of the Juno-106. Unlike some early MIDI-equipped instruments, the Juno-106 allows extensive real-time parameter control via MIDI continuous controllers. This capability has contributed to its longevity, enabling integration with contemporary DAWs, sequencers, and hardware controllers.
In addition to MIDI, the instrument includes standard audio outputs and a headphone jack, making it suitable for both studio and stage use.
Reliability and Common Issues
While generally regarded as reliable, the Juno-106 is known for a common failure point: the voice chips. Over time, the original epoxy-coated chips can degrade, leading to dead or unstable voices. Modern replacement solutions are widely available, and fully serviced units often perform better than they did when new.
Routine maintenance, including power supply servicing and slider cleaning, is typical for an instrument of this age.
Musical Legacy
The Juno-106 has been used extensively across genres, including pop, new wave, house, techno, ambient, and film scoring. Its sound is immediately recognizable, often associated with lush pads, solid bass lines, and clear, present leads.
Artists and producers value the instrument not for complexity, but for its reliability, musicality, and ability to sit naturally in a mix. As a result, it remains a common reference point for both hardware recreations and software emulations.
Modern Relevance
Despite numerous reissues, clones, and digital emulations, the original Juno-106 continues to command respect and demand. Its balance of analog tone, digital stability, and hands-on control aligns well with modern production values, particularly for musicians seeking character without excessive technical overhead.
For many, the Juno-106 represents an ideal synthesis of form and function: an instrument that prioritizes sound and usability over unnecessary complexity.
Conclusion
The Roland Juno-106 endures because it succeeds at exactly what it set out to do. It delivers unmistakably musical analog sound in a format that is approachable, dependable, and expressive. More than four decades after its release, it remains a benchmark for polyphonic synthesizer design and a foundational instrument in electronic music history.
